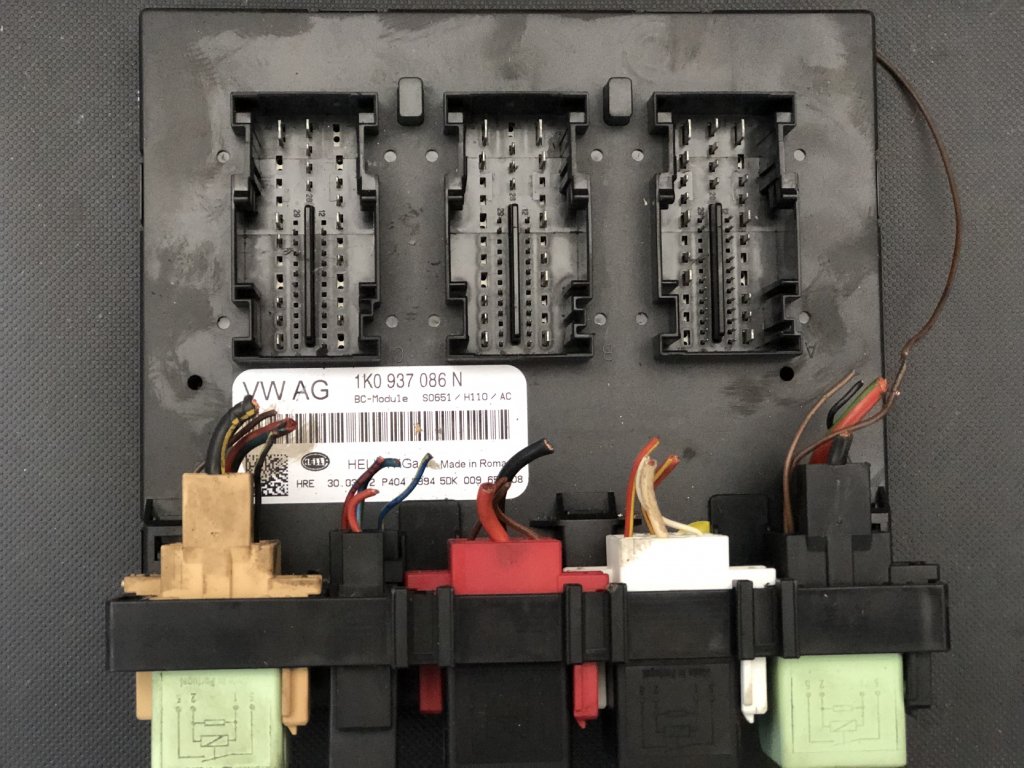

Komfortní jednotka 1K0937089 - BCM Gateway pro VW Golf V/VI a PQ35 platformu

VCDS/ODIS IDENTIFIKACE:

Address 09: Cent. Elect.    Labels: 1K0-937-089.clb
Part No SW: 1K0 937 089 G    HW: 1K0 937 089 G
Component: BCM PQ35 H++    110 0720
Revision: 00110    Serial number: 00000987654321
Coding: 7F380E3E94341FE60098040067354095708C70388F0080400000000000
Shop #: WSC 00066 444 12345
VCID: 3467DCBC9E87F2D2

Component Protection: 001 - Active

Subsystem 1 - Part No SW: 1K0 955 559 AH    HW: 1K0 955 559 AH
Component: RLS 030408    021 0043
Coding: 00208933
Shop #: WSC 00066

No fault code found.

LONG CODING 1K0937089:

Byte 0: Základní konfigurace
Bit 0 = Pravostranné řízení
Bit 1 = Kessy full
Bit 2 = Alarm Cat 1
Bit 3 = Panoramic roof
Bit 4 = Trailer
Bit 5 = Rain/Light sensor
Bit 6 = Bi-Xenon
Bit 7 = AFS active

Byte 1: Zamykání premium
Bit 0 = Selective unlock
Bit 1 = Auto-lock GPS
Bit 2 = Safe lock auto
Bit 3 = Soft-close doors
Bit 4 = Power trunk
Bit 5 = Emergency unlock
Bit 6 = Child lock electric
Bit 7 = Kessy all doors

Byte 2: Okna premium
Bit 0 = Convenience full
Bit 1 = Soft-close windows
Bit 2 = Rain close auto
Bit 3 = Anti-trap advanced
Bit 4 = One-touch all
Bit 5 = Heat protection
Bit 6 = Panoramic control
Bit 7 = Ventilation mode

Byte 3: Světla premium
Bit 0 = Coming Home Plus
Bit 1 = Leaving Home Plus
Bit 2 = LED DRL
Bit 3 = Dynamic cornering
Bit 4 = Static cornering
Bit 5 = Highway light
Bit 6 = Bad weather
Bit 7 = Auto high beam

Byte 4: Zrcátka premium
Bit 0 = Folding auto
Bit 1 = Memory 3 pos
Bit 2 = Auto-dim both
Bit 3 = Blind spot ready
Bit 4 = Reverse both
Bit 5 = LED puddle
Bit 6 = GPS sync
Bit 7 = Park fold

Byte 5: Parkovací systémy
Bit 0 = PDC front
Bit 1 = PDC rear
Bit 2 = OPS display
Bit 3 = Park Assist
Bit 4 = Rear camera
Bit 5 = 360 camera ready
Bit 6 = Trailer assist
Bit 7 = Cross traffic

Byte 6-15: Rozšířené funkce
Specifické pro:
- Sedadla s pamětí
- Klimatizace zóny
- Ambient lighting
- Massage/ventilace
- Remote services
- Predictive systems

ADAPTACE 1K0937089:

IDE00265-IDE00275: Standardní (jako 086)

IDE00276 - Kessy sensitivity
0-10 = Level (5 default)

IDE00277 - AFS mode
0 = Off
1 = Dynamic
2 = Static
3 = Both

IDE00278 - Memory positions
0 = Off
1 = 2 positions
2 = 3 positions
3 = 3 + guest

IDE00279 - Bi-Xenon leveling
-5 to +5 = Correction

IDE00280 - Ambient lighting
0 = Off
1-10 = Brightness
11-20 = Color (RGB)

IDE00281 - Seat memory link
0 = Off
1 = With key
2 = With user

IDE00282 - Park Assist mode
0 = Off
1 = Basic
2 = Advanced
3 = Professional

IDE00283 - Soft-close force
0-10 = Level

IDE00284 - Auto-fold mirrors
0 = Off
1 = Lock only
2 = Lock + speed
3 = GPS zones

IDE00285 - OPS sensitivity
0-10 = Level

ČASTÉ KÓDY 1K0937089:

00003 - Control Module
        014 - Defective
        → BCM vadný

00466 - Control Module Locked
        → Component Protection

01044 - Control Module Incorrectly Coded
        → Špatné long coding

01542 - Kessy Sensor Driver Door (G415)
        008 - Implausible Signal
        → Anténa Kessy vadná

01543 - Kessy Sensor Passenger Door (G416)
        008 - Implausible Signal
        → Anténa Kessy vadná

01598 - Driver Seat Memory (J136)
        004 - No Signal/Communication
        → Paměť sedadla

01599 - Passenger Seat Memory (J137)
        004 - No Signal/Communication
        → Paměť sedadla

01772 - Left Cornering Light (M51)
        010 - Open Circuit
        → Odbočovací světlo

01773 - Right Cornering Light (M52)
        010 - Open Circuit
        → Odbočovací světlo

02094 - Component Protection Active
        002 - -
        → CP blokace

02310 - Bi-Xenon Headlight Left (A10)
        004 - No Signal/Communication
        → Xenon jednotka

02311 - Bi-Xenon Headlight Right (A11)
        004 - No Signal/Communication
        → Xenon jednotka

02354 - AFS Control Module (J745)
        004 - No Signal/Communication
        → AFS modul

02383 - Parking Aid Control Module (J446)
        004 - No Signal/Communication
        → PDC modul

02395 - Camera Control Module (J928)
        004 - No Signal/Communication
        → Kamera modul

02411 - Soft-Close Motor Driver (V382)
        011 - Open Circuit
        → Motor soft-close

02412 - Soft-Close Motor Passenger (V383)
        011 - Open Circuit
        → Motor soft-close

02550 - Ambient Lighting Control
        008 - Implausible Signal
        → RGB modul

U0001 - High Speed CAN
        → CAN problém

U0126 - Lost Communication with Steering Angle
        → Ztráta úhlu řízení

U0428 - Invalid Data from AFS
        → AFS data chyba

VÝMĚNA 1K0937089:

PŘÍPRAVA SPECIÁLNÍ:
1. ODIS Engineering nutný!
2. Zaznamenat:
   - Long coding (16 bytů)
   - Všechny IDE adaptace
   - Component list komplet
   - Subsystémy (RLS, AFS, atd.)

DEMONTÁŽ:
1. Odpojit baterii (-)
2. Počkat 15 minut!
3. Demontovat:
   - Kompletní spodní panel
   - Boční kryty
   - A-sloupek kryt (částečně)
4. BCM lokace:
   - 7 konektorů!
   - Opatrně na pořadí

MONTÁŽ:
1. Nový BCM (přesná verze!)
2. Konektory v pořadí:
   T52a → T52b → T32 → T20 → T16 → T10 → T8
3. Zkontrolovat všechny!

PROGRAMOVÁNÍ ONLINE:
1. ODIS Engineering
2. Online session
3. [Replace BCM High-line]
4. Automatický průvodce:
   - CP removal
   - Long coding transfer
   - IDE adaptation
   - Subsystem coding
   - Component protection
5. Test 30 minut!

KALIBRACE SYSTÉMŮ:
1. AFS kalibrace
2. Xenon leveling
3. Memory positions
4. Kessy antény
5. PDC kalibrace
6. Camera alignment

BI-XENON & AFS 1K0937089:

AKTIVACE:
1. [09 - Cent. Elect.]
2. Long Coding:
   Byte 0, Bit 6 = 1 (Bi-Xenon)
   Byte 0, Bit 7 = 1 (AFS)
   Byte 3, Bit 3 = 1 (Dynamic)
   Byte 3, Bit 4 = 1 (Static)

KALIBRACE AFS:
1. [55 - Headlight Range]
2. [04 - Basic Settings]
3. Vozidlo na rovině
4. Nádrž 50% paliva
5. Řidič ve vozidle
6. Start kalibrace
7. Čekat na dokončení

ADAPTACE XENON:
1. [09 - Cent. Elect.]
2. [10 - Adaptation]
   IDE00277 = 3 (Both)
   IDE00279 = 0 (Center)

TEST FUNKCÍ:
1. Start motor
2. Otočit volant vlevo/vpravo
3. Kontrola natáčení
4. Test dálkových
5. Test mlhovek

MEMORY SEATS 1K0937089:

AKTIVACE:
1. Long Coding:
   Byte 4, Bit 1 = 1
2. Adaptace:
   IDE00278 = 3 (3+guest)
   IDE00281 = 1 (With key)

PROGRAMOVÁNÍ POZIC:
1. Nastavit sedadlo
2. Nastavit zrcátka
3. Nastavit volant
4. Držet SET + 1/2/3
5. 2x pípnutí = OK

PŘIŘAZENÍ KLÍČŮ:
1. [36 - Seat Memory]
2. [10 - Adaptation]
3. Přiřadit klíč 1 → pozice 1
4. Přiřadit klíč 2 → pozice 2

TEST:
1. Zamknout auto
2. Odemknout klíčem 1
3. Automatické nastavení

MVB 001-010: Standardní (jako 086)

MVB 011: Bi-Xenon
1: Left ballast (V)
2: Right ballast (V)
3: Leveling front (%)
4: Leveling rear (%)

MVB 012: AFS
1: Steering angle (°)
2: Left position (°)
3: Right position (°)
4: Vehicle speed (km/h)

MVB 013: Kessy detail
1: Driver antenna (mV)
2: Passenger antenna (mV)
3: Rear left antenna (mV)
4: Rear right antenna (mV)

MVB 014: Kessy interior
1: Center console (mV)
2: Rear shelf (mV)
3: Trunk antenna (mV)
4: Start button (mV)

MVB 015: Memory
1: Driver position
2: Passenger position
3: Active user
4: Memory status

MVB 016: PDC
1: Front left (cm)
2: Front right (cm)
3: Rear left (cm)
4: Rear right (cm)

MVB 020: Soft-close
1: Driver door (%)
2: Passenger door (%)
3: Rear left (%)
4: Rear right (%)

MVB 025: Ambient
1: Brightness (%)
2: Color R (0-255)
3: Color G (0-255)
4: Color B (0-255)

Správná identifikace:
Component: BCM PQ35 H++
nebo
Component: BCM PQ35 High
