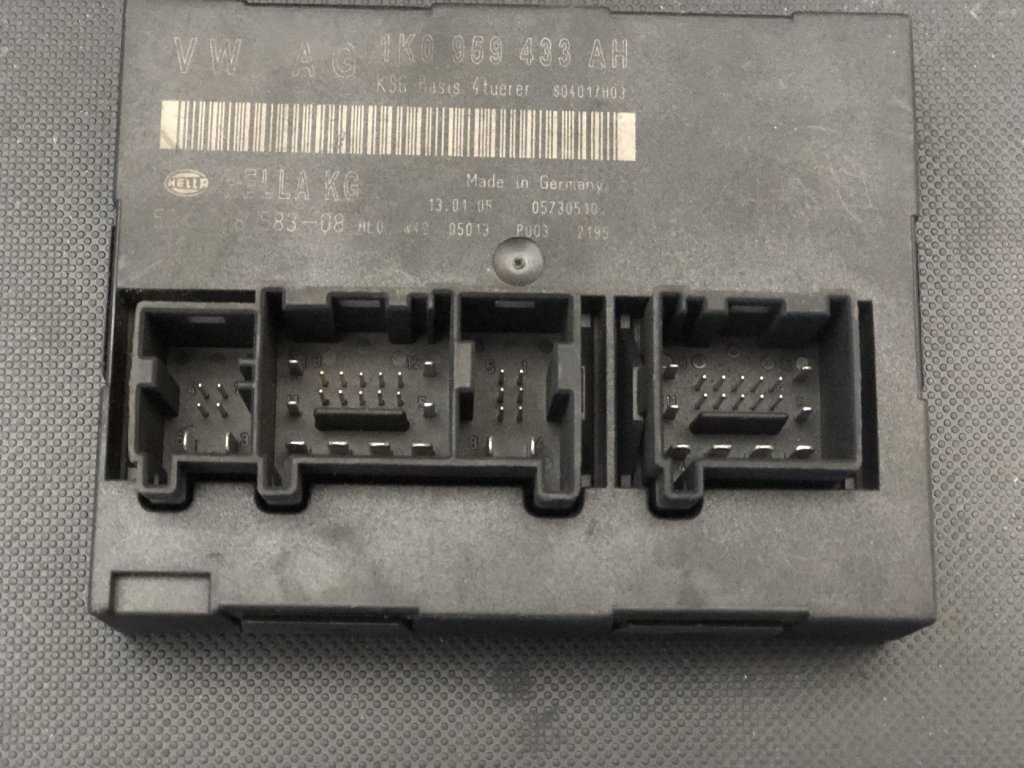

Komfortní jednotka 1K0959433 - Centrální řídicí jednotka komfortní elektroniky VW Golf V/Jetta/Touran

LONG CODING PRO 1K0959433:

Formát: XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX
(16 nebo více bajtů v HEX)

Byte 00: Země/Region
00 = Německo
01 = Evropa
02 = USA/Kanada
04 = UK (RHD)
08 = Čína

Byte 01: Výbava základní
Bit 0 = El. okna přední
Bit 1 = El. okna zadní
Bit 2 = El. zrcátka
Bit 3 = Centrální zamykání
Bit 4 = Alarm
Bit 5 = Climatronic
Bit 6 = Vyhřívání sedadel
Bit 7 = PDC

Byte 02: Komfort funkce
Bit 0 = Comfort open
Bit 1 = Comfort close
Bit 2 = Coming Home
Bit 3 = Leaving Home
Bit 4 = Rain sensor
Bit 5 = Light sensor
Bit 6 = KESSY
Bit 7 = Safe lock

Byte 03: Světla
Bit 0 = Xenon
Bit 1 = LED DRL
Bit 2 = Fog lights
Bit 3 = Cornering lights
Bit 4 = Auto lights
Bit 5 = Highway lights
Bit 6 = Dynamic signals
Bit 7 = Matrix LED

Byte 04-15: Další funkce...

Příklad Golf V Highline:
01 FF 7F 1F 00 00 00 00 00 00 00 00 00 00 00 00

ADAPTACE PRO 1K0959433:

=== ZÁKLADNÍ ===
IDE00021-Access control 2-Learned keys
Value: 1-8 (počet klíčů)

IDE00022-Access control 2-Vehicle class
Value: podle modelu

IDE00049-Ambient lighting
Value: 0-100% brightness

IDE00050-Coming Home lighting
Value: 0-60 seconds

IDE00051-Leaving Home lighting
Value: 0-60 seconds

=== ZAMYKÁNÍ ===
IDE00087-Selective unlocking
Value: 0=all, 1=driver

IDE00088-Automatic locking
Value: 0=off, 1=15km/h, 2=25km/h

IDE00089-Automatic unlocking
Value: 0=off, 1=key out, 2=ign off

IDE00090-Confirmation signals optical
Value: 0=off, 1=lock, 2=unlock, 3=both

IDE00091-Confirmation signals acoustic
Value: 0=off, 1=EU, 2=USA

=== OKNA ===
IDE00103-Comfort opening
Value: 0=off, 1=all windows

IDE00104-Comfort closing
Value: 0=off, 1=all windows

IDE00105-Rain closing
Value: 0=off, 1=active

IDE00106-Thermal protection
Value: 0=off, 1=active

=== KESSY ===
IDE00167-KESSY Comfort opening
Value: 0=off, 1=active

IDE00168-KESSY Comfort closing
Value: 0=off, 1=active

IDE00169-KESSY Automatic locking
Value: 0=off, 1=walk away

IDE00170-KESSY Approach lighting
Value: 0=off, 1=active

=== ALARM ===
IDE00201-Alarm interior monitoring
Value: 0=off, 1=reduced, 2=full

IDE00202-Alarm tilt sensor
Value: 0=off, 1=active

IDE00203-Alarm confirmation
Value: 0=horn, 1=horn+lights

=== SPECIÁLNÍ ===
IDE00272-Seat heating level memory
Value: 0=off, 1=active

IDE00273-Mirror dip in reverse
Value: 0=off, 1=passenger, 2=both

IDE00274-Easy Entry
Value: 0=off, 1=driver

IDE00275-Tear wiper activation
Value: 0=off, 1=active

00003 - Control Module - No Communication
00466 - Control Module Not Coded
00532 - Supply Voltage B+ - Too Low
01044 - Control Module Incorrectly Coded
01134 - Alarm Horn (H12) - Open Circuit
01314 - Engine Control Module - No Communication
01316 - ABS Control Module - No Communication
01330 - Central Control Module - Defective
01331 - Door Control Module Driver - No Comm
01332 - Door Control Module Passenger - No Comm
01333 - Door Control Module Rear Left - No Comm
01334 - Door Control Module Rear Right - No Comm
01435 - Brake Light Switch (F) - Implausible Signal
01542 - Comfort CAN - Malfunction
01598 - Driver Key - Low Battery
01599 - Passenger Key - Low Battery
02635 - Steering Column Lock - No Communication
16955 - Key 1 - Adaptation Limit Exceeded
16988 - Internal Control Module - Memory Error
18058 - CAN Gateway - No Communication
18265 - Load Management - Second Battery Low
B1000 - HV Battery Isolation - Circuit Malfunction
B10BA - KESSY Sensor Driver Door - No Signal
B10BB - KESSY Sensor Passenger Door - No Signal
B10BC - KESSY Sensor Trunk - No Signal
U0121 - Lost Communication with ABS
U0140 - Lost Communication with BCM

COMPLETE SETUP PRO 1K0959433:

1. Připojení VCDS/ODIS:
   [09 - Central Elect.]

2. Kontrola verze:
   Part No: 1K0 959 433 XX
   Component: BCM PQ35

3. Component Protection:
   [Security Access]
   Nutný online přístup!

4. Long Coding:
   [07 - Long Coding]
   16+ bajtů podle výbavy

5. Adaptace:
   [10 - Adaptation]
   IDE kanály

6. Basic Settings:
   [04 - Basic Settings]
   Inicializace systémů

KESSY SETUP:

Pouze s výbavou KESSY!

1. Hardware check:
   - Anténa v klikách
   - Anténa v náraznících
   - Anténa v interiéru
   - Start/Stop tlačítko

2. Long Coding:
   Byte 02, Bit 6 = 1

3. Adaptace:
   IDE00167 = 1 (comfort open)
   IDE00168 = 1 (comfort close)
   IDE00169 = 1 (walk away lock)
   IDE00170 = 1 (approach light)

4. Učení klíčů:
   IDE00021
   Všechny klíče najednou!

5. Test:
   - Přiblížení s klíčem
   - Dotek kliky
   - Auto odemkne
   - Start bez klíče

COMPONENT PROTECTION:

Po výměně BCM:

1. Online přístup nutný:
   - ODIS Service
   - Nebo VAS 6154
   - Internet připojení

2. Procedura:
   [09 - Central Elect.]
   [Security Access]
   Online authentication

3. Adaptace:
   Component exchange
   Follow wizard

4. Cena:
   50-100 EUR online
   2.000-4.000 Kč servis

5. Alternativa:
   Použitá BCM + klonování
   (nelegální, nedoporučeno)

WINDOW INITIALIZATION:

Po odpojení baterie:

1. [09 - Central Elect.]

2. [04 - Basic Settings]

3. Pro každé okno:
   IDE04187 - Window regulator driver
   IDE04188 - Window regulator passenger
   IDE04189 - Window regulator rear left
   IDE04190 - Window regulator rear right

   Activate → okno se učí

4. Manuální metoda:
   - Okno dolů + držet 5s
   - Okno nahoru + držet 5s
   - 2x opakovat

5. Test one-touch all

ALARM SETUP:

Pro plný alarm:

1. Long Coding:
   Byte 01, Bit 4 = 1

2. Adaptace:
   IDE00201 = 2 (full interior)
   IDE00202 = 1 (tilt active)
   IDE00203 = 1 (horn+lights)

3. Kalibrace:
   [04 - Basic Settings]
   IDE04250 - Interior sensor
   IDE04251 - Tilt sensor

   Vozidlo musí být:
   - Vodorovně
   - Zavřené
   - Klid 30s

4. Test:
   - Zamknout
   - Počkat 30s
   - Pohyb/náklon
   - Alarm triggered

CLIMATRONIC CONTROL:

1. Long Coding:
   Byte 01, Bit 5 = 1

2. CAN komunikace:
   [08 - Auto HVAC]
   Zkontrolovat komunikaci

3. Rest funkce:
   IDE00310 = 30 (minut)

4. Auxiliary heater:
   IDE00311-314 (timery)

5. Heated seats memory:
   IDE00272 = 1

MVB 001 - System Status:
1: Terminal 15 (On/Off)
2: Terminal 30 (11.0-14.5V)
3: Terminal 31 (Ground OK)
4: Vehicle speed (0-300 km/h)

MVB 002 - Doors:
1: Driver door (Open/Closed/Locked)
2: Passenger door (Open/Closed/Locked)
3: Rear left door (Open/Closed/Locked)
4: Rear right door (Open/Closed/Locked)

MVB 003 - Windows:
1: Driver window (0-100%)
2: Passenger window (0-100%)
3: Rear left window (0-100%)
4: Rear right window (0-100%)

MVB 004 - Central Locking:
1: Lock status (Locked/Unlocked)
2: Safe lock (Active/Inactive)
3: Fuel flap (Locked/Unlocked)
4: Trunk/Hood (Open/Closed)

MVB 005 - Keys:
1: Key 1 status (OK/Low/Not present)
2: Key 2 status (OK/Low/Not present)
3: Key 3 status (OK/Low/Not present)
4: Keys learned (1-8)

MVB 006 - KESSY:
1: KESSY active (Yes/No)
2: Key in range (Yes/No)
3: Driver door sensor (OK/Fault)
4: Start authorization (Yes/No)

MVB 007 - Alarm:
1: Alarm armed (Yes/No)
2: Interior sensor (Active/Inactive)
3: Tilt sensor (Active/Inactive)
4: Last trigger source

MVB 008 - Lighting:
1: Coming Home (0-60s)
2: Leaving Home (0-60s)
3: Ambient light (0-100%)
4: DRL status (On/Off)

MVB 009 - Climate:
1: Rest heat/vent (Active/Off)
2: Aux heater (Active/Off)
3: Heated seats L (0-3)
4: Heated seats R (0-3)

MVB 010 - Communication:
1: CAN Comfort (OK/Error)
2: CAN Drive (OK/Error)
3: CAN Extended (OK/Error)
4: LIN-Bus (OK/Error)

Address 09: Central Elect.
---------------------
Part No SW: 1K0 959 433 AT HW: 1K0 959 433 AT
Component: BCM PQ35 H+ 103 0575
Revision: 00103 Serial number: 00000000000000
Coding: 40950F2D907F0E41E00080880040148854084C025D60448820200040
Shop #: WSC 00028 000 00000
VCID: 3479BFAE1D2F6D7EBB

Component Protection: Active
